The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.

Specifications:

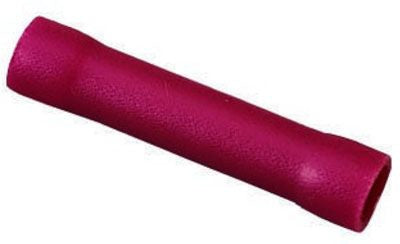

Type: Butt
Voltage Rating: 600 V
Length: 0.986 Inch
Maximum Insulation Diameter: 0.157 Inch
Conductor Size: 22 to 18 AWG
Insulation Type: Vinyl Insulated
Color: Red
Material: Tin Plated Brass
Temperature Rating: 75 Deg C
Standard Package: 25 per Carton
Approval: UL 774A, CUL
