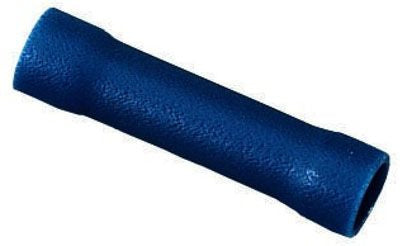

IDEAL Electrical 83-9291 Butt Splice
Regular price
$0.52
Couldn't load pickup availability
The complete line of IDEAL crimp terminals, disconnects, and splices offer the right product for any electrical system that might be encountered. From rings and spades to insulated disconnects, there is a product for any wire range. All insulated terminals are color-coded for easy identification and come in durable plastic packaging for easy storage.
Specifications:
Type: Butt
Voltage Rating: 600 V
Length: 0.986 Inch
Maximum Insulation Diameter: 0.177 Inch
Conductor Size: 16 to 14 AWG
Insulation Type: Vinyl Insulated
Color: Blue
Material: Tin Plated Brass
Temperature Rating: 75 Deg C
Standard Package: 25 per Carton
Approval: UL 774A, CUL
