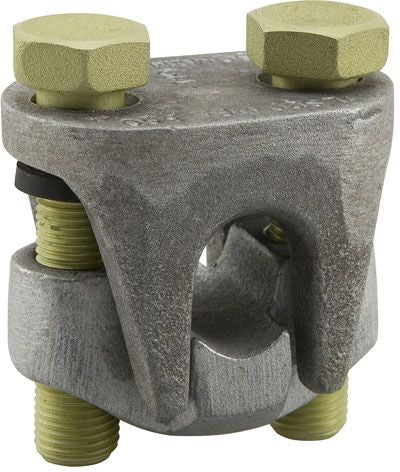

Ilsco DBA-250S Mechanical Cable Bolt Connector
Regular price
$0.47
Couldn't load pickup availability
Provides Maximum Strength; Provides Low Contact Resistance; Hold the Bolts Captive and Eliminates the Possibility of Loose Hardware; Permits Inventories to be Kept to a Minimum; Provides Efficient Use and Flexibility in the Field; Range Taking; Re-Usable; RoHS Compliant
Specifications:
Voltage Rating: 600 V
Installation: Two Bolt with Spacer Bar
Conductor Material: Aluminum/Copper
Minimum Run Conductor Size: 1/0 AWG
Maximum Run Conductor Size: 250 KCMIL
Minimum Tap Conductor Size: 10 AWG
Maximum Tap Conductor Size: 250 KCMIL
Material: Wax Plated High Strength Heat Treated Aluminum Alloy
