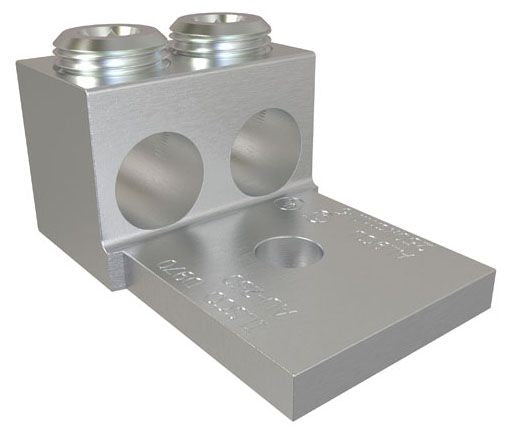

Ilsco AU-250 Mechanical Lug

Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Versatility; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry
Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 250 KCMIL
Conductor Material: Aluminum/Copper
Screw Type: 5/16 Inch Hex
Material: Electro Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1-9/16 Inch L x 1-21/32 Inch W x 1/4 Inch Thk
Stud Size: 3/8 Inch
Overall Length: 2-9/16 Inch
Approval: UL 453G/486A/486B, CSA
