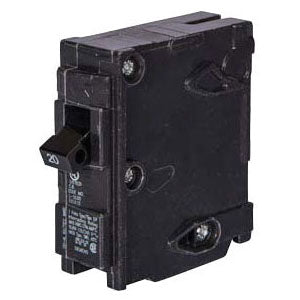

Plug-In or Bolt-On Branch Circuit Breakers for Siemens Single Phase Load Centers; Saving Money-Two Safety Devices Combined into One; LED Trip Indicator-a Siemens Exclusive; Both Lugs at the Same Angle for Easier Wiring

Specifications:

Type: Miniature, Thermal and Fixed Magnetic Trip
Number of Poles: 1
Voltage Rating: 120 VAC at 50/60 Hz
Current Rating: 50 Ampere at 40 Deg C
Interrupting Rating: 10 Kiloamp
Terminal Type: Load Lug
Wire Size: 8 to 6 AWG (Copper), 8 to 4 AWG (Aluminum)
Mounting: Plug-In
Used On: Loadcenter
Size: 1 Inch W x 3 Inch D x 3-1/8 Inch H
Approval: UL 489, CSA C22.2
