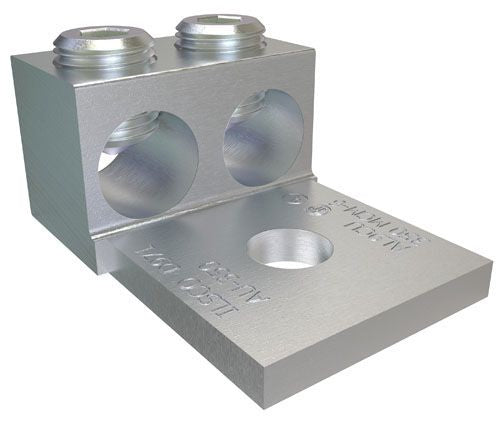

Ilsco AU-350 Mechanical Lug

Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Versatility; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry
Number of Conductors: 2
Minimum Conductor Size: 6 AWG
Maximum Conductor Size: 350 KCMIL
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 5/16 Inch Hex
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1-3/4 Inch Length x 1-57/64 Inch Width x 1/4 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 2-7/8 Inch
Approval: UL 467/486A/B, CSA
