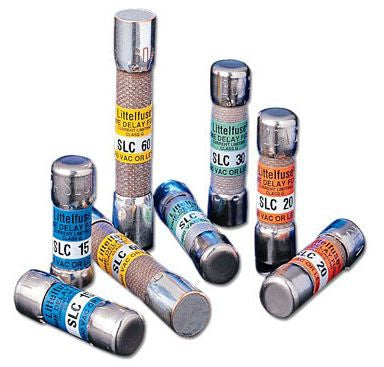

The unique design of Littelfuse's compact SLC series Class G fuses provide additional time-delay over competitive products which increases system reliability. Compact Class G fuses were the first fuse series to approach midget fuse dimensions and meet NEC requirements for branch-circuit protection. The unique dimensions of SLC series Class G fuses prevents insertion of lower voltage fuses in Class G fuse holders. The fuse's varying length prevents insertion of higher ampere rated fuses in fuse holders designed for lower ampere ratings. Class CC fuses are replacing Class G fuses in many new designs. Class CC fuses superior time delay plus higher voltage and interrupting ratings meet the needs of modern circuits. Littelfuse's introduction of POWR-PRO CCMR series fuses, with ratings up to 60 Amperes for providing branch circuit protection, are accelerating this trend.

Specifications:

Type: Class G
Characteristics: Medium Time Delay
Voltage Rating: 480 VAC/170 VDC
Current Rating: 50 Ampere
Interrupting Rating: 100000 Ampere (Symmetrical), 10000 Ampere (DC)
Terminal Type: Ferrule
Diameter: 13/32 Inch
Length: 2-1/4 Inch
Approval: UL 248-5, CSA, QPL-WF-1814, CE
