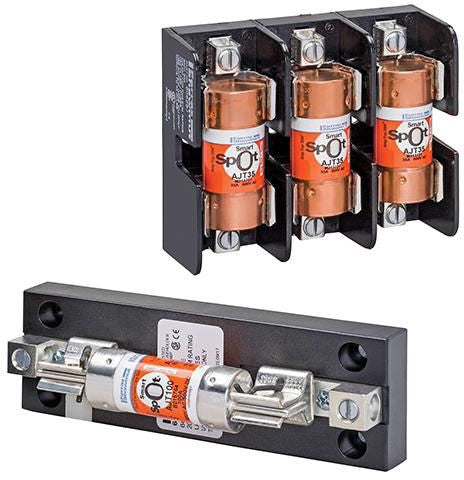

Mersen EP 60608J Fuse Block

Out of stock
SKU: 32777
Regular price $79.89

A Choice of Pressure Plate and Special Order Stud Connectors Fit a Wide Range of Stranded or Solid Copper or Aluminum Conductors; Insulators are Either Molded Glass-Filled Polycarbonate (Gap) or Phenol with Verified Dielectric Strength in Excess of 2500V 30A, 60A and the New 100A So Fuse Blocks Feature a Unique Adder Block Configuration Which Can be Snapped Onto 1, 2 or 3 -Pole Blocks to Form Multi-Pole Segmented Blocks of as Many Poles as Desired; All Fuse Clips are Made of High Conductivity Tin-Plated Copper with a Choice of Spring-Reinforced or Non-Spring Reinforced Clops; RoHS/REACH Compliant


Type: Barrier
Material: Molded Glass Filled Polycarbonate
Number of Poles: 3
Fuse Type: Class J
Fuse Voltage Rating: 600 Volt AC/DC
Fuse Current Rating: 60 Amp
Wire Size: 14 to 2 AWG (Aluminum/Copper)
Terminal Type: Box
Clip Type: Spring Reinforced
Approval: UL 4248, CSA
