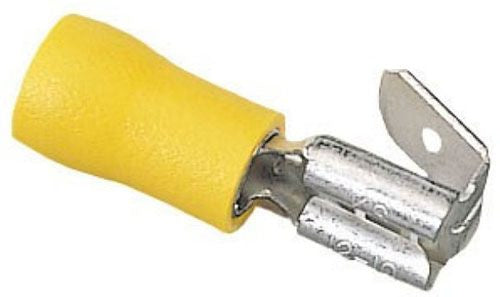

IDEAL Electrical 83-9631 Multi-Stack Disconnect

Butted Seam Construction Prevents Splitting Under Maximum Pressure; Internal Barrel Serrations Grip Wires Tightly to Resist Pull-Out and Reduce Electrical Resistance; Tin Plated Brass Construction for Corrosion Resistance; Shouldered Barrel Insulation Quickly Positions Terminal for Proper Crimping; Expanded Insulation Entry Accommodates a Wide Variety of Insulation Diameters and Provides Additional Insulation Support

Specifications:

Minimum Conductor Size: 12 AWG
Maximum Conductor Size: 10 AWG
Insulation Type: Vinyl Insulated
Color: Yellow
Tab Size: 0.25 Inch x 0.032 Inch
Maximum Insulation Diameter: 0.244 Inch
Temperature Rating: 75 Deg C
Standard Package: 25
Approval: UL
