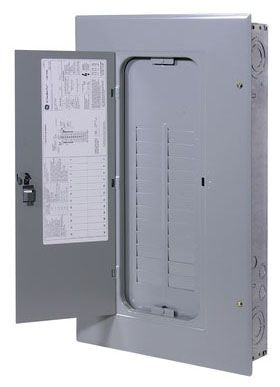

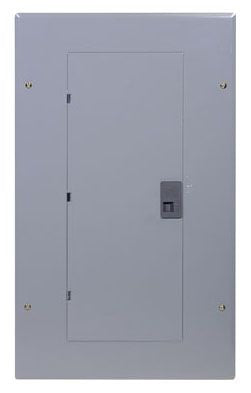

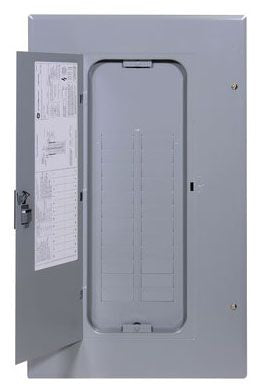

ABB GE Industrial Solutions TL24415C Load Center

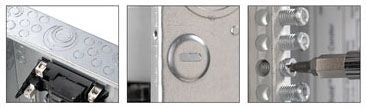

1-Piece Interior Removes and Reinstalls Easily; Full-Length Neutrals are Easier to Wire Reducing Installation Time and Cost; Minimum 100% Neutral Terminations; Sturdy Copper Bus and Galvanized Box Increase Durability and Reliability; Main Breaker Configuration Allows Top or Bottom Feed without Modification; Combination Slotted/Robertson Square-Drive Speeds Screw Wiring; 100% Rated Split Neutral on Each Side; Tie Bar May be Removed to Split Neutral/Ground

Specifications:

Type: Main Lug
Voltage Rating: 208 Star/120 Volt AC
Current Rating: 150 Amp
Circuit Configuration: 3-Phase 4-Wire
Maximum Number of Circuits: 24
Maximum Number of Spaces: (24) 1-Pole 1 Inch, (12) 2-Pole 1 Inch, (8) 3-Pole 1 Inch
Main Breaker Type: THQL, THHQL
Breaker Mounting: Plug-On
Interrupting Rating: 22 Kiloamp
Bus Material: Aluminum
Feed Location: Top/Bottom
Main Wire Size: 1 to 3/0 AWG (Copper), 2/0 to 3/0 AWG (Aluminum)
Enclosure Type: NEMA 1, Indoor
Cover Type: Flush/Surface
Enclosure Size Designation: 7
Size: 14 Inch Width x 3-3/4 Inch Depth x 24-11/16 Inch Height
Approval: UL
