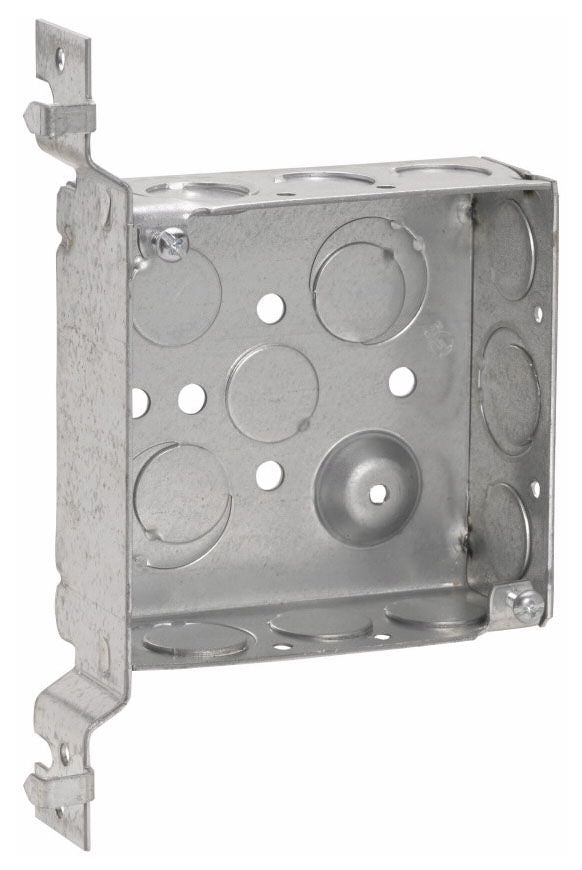

Crouse-Hinds TP425 Electrical Square Outlet Box
Couldn't load pickup availability
Raised Ground Screw Location in the Welded Boxes Saves Time in installation; Available with Pre-installed Ground Screws and Pigtails for increased Labor Savings; Knockouts are Suitable for Use without a Bonding Jumper in Circuits Above or Below 250 Volts; Welded or Drawn Construction to Match Customer Preference; Extensive Cover Offering to Meet Various Customer Applications and Needs
Specifications:
Height: 4 Inch
Width: 4 Inch
Depth: 1-1/2 Inch
Capacity: 22 Cu Inch
Number of Knockouts: 14
Knockout Location: (5) Bottom, (9) Side
Knockout Size: (2) 1/2 Inch Bottom, (2) (1/2 Inch-3/4 Inch) Eccentric Bottom, (6) 1/2 Inch Side, (3) (1/2 Inch-3/4 Inch) Eccentric Side
Material: Welded Steel
Mounting: VP Bracket
Standard Package: 25
Approval: UL 514A/514B/514C
