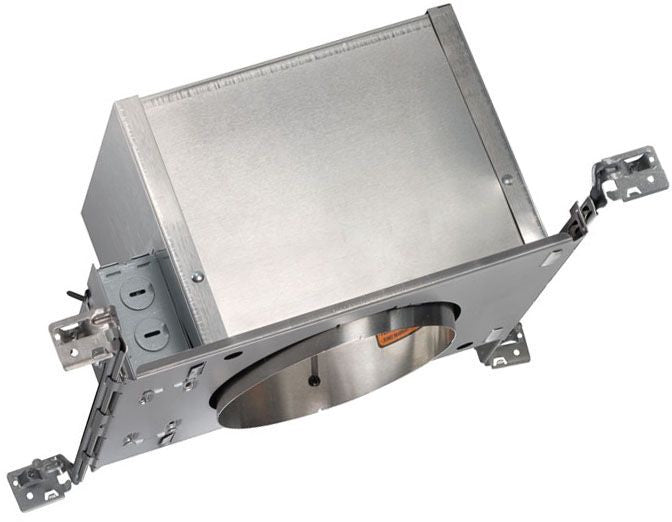

The double wall new construction housing for use in 2/12 to 6/12 pitch slopes, 9 to 27 degrees, can be completely covered with insulation. The housing is fully Air-Loc sealed to stop infiltration and exfiltration of air, reducing heating and cooling costs. Junoâ€s patented Slope Ceiling Down-Lites also direct light straight down, providing proper lighting from a sloped surface.

Specifications:

Type: Double Wall, Slope Ceiling Housing
Air Rating: Air Tight
Lamp Type: A19/MR16/BR30/R30/PAR30/PAR30L/PAR38
Lamp Wattage: 50/60/65/75/90 Watt
Lamp Mounting Position: Vertical
Nominal Aperture Size: 6 Inch
Aperture Shape: Round
Ceiling Type: Insulated

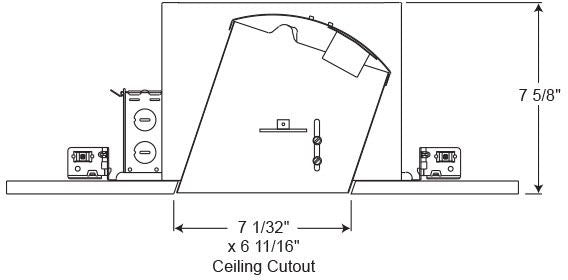

Ceiling Opening Size: 7-1/32 Inch x 6-11/16 Inch Oval
Installation: New Construction
Height: 7-5/8 Inch
Housing Material: 0.032 Inch Aluminum Housing, 22 Gauge Die-Formed Galvanized Steel Mounting Frame
Junction Box Type: Pre-Wired with (5) 1/2 Inch, (1) 3/4 Inch Knockout, (8) 12 AWG 90 Deg C Branch Circuit Conductor, (4) Non-Metallic Sheathed Cable Connector
Application: Damp/Wet Location, Indoor, Residential
Approval: UL, CSA
