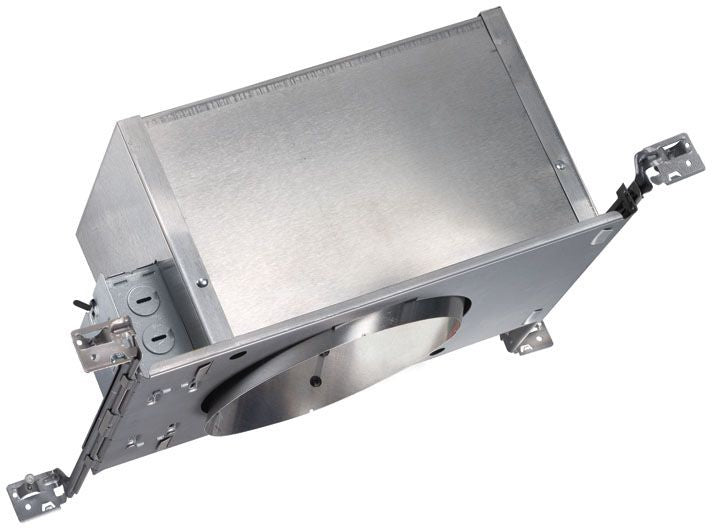

The Juno IC928 downlight is an IC-rated, double wall construction housing for use in 7/12- to 12/12-pitch slopes, 30- to 45-degrees, can be completely covered with insulation. Its energy-efficient Air-Loc installation stops infiltration and exfiltration of air, reducing heating and cooling costs. Junoâ€s patented Slope Ceiling Down-Lites direct light straight down, providing proper lighting from a sloped surface.

Specifications:

Type: Double Wall Housing, Sloped Ceiling Recessed
Air Rating: Air Tight
Lamp Type: PAR16/PAR30/PAR38
Lamp Mounting Position: Vertical
Nominal Aperture Size: 6 Inch
Aperture Shape: Round
Ceiling Type: Insulated, Sloped

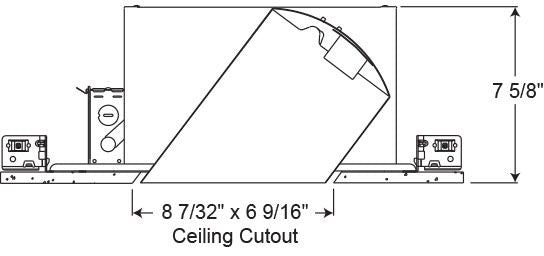

Ceiling Opening Size: 8-7/32 Inch x 6-9/16 Inch
Installation: New Construction
Height: 7-5/8 Inch
Housing Material: 0.032 Inch Aluminum (Housing), 22 Gauge Die-Formed Galvanized Steel (Mounting Frame)
Junction Box Type: Pre-Wired with (5) 1/2 Inch, (1) 3/4 Inch Knockout, (4) Non-Metallic Sheathed Cable Connector, 12 AWG 90 Deg C Branch Circuit Conductor
Application: Damp/Wet Location, Indoor
Approval: UL, CSA
