Scotchlok 562-BOX Electrical Wire IDC Connector
Regular price
$0.40
Couldn't load pickup availability

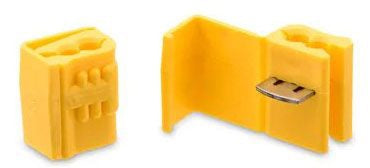

3Mâ„¢ Scotchlokâ„¢ Insulation Displacement Connector 562 is a Double Run or Tap Connector for Tap or Parallel Splicing; Polypropylene Insulated, Self-Stripping and Flame Retardant; RoHS Compliant; Made in USA
Specifications:
Voltage Rating: 600 Volt
Wire Size: 12 AWG (Solid/Stranded), 10 AWG (Stranded)

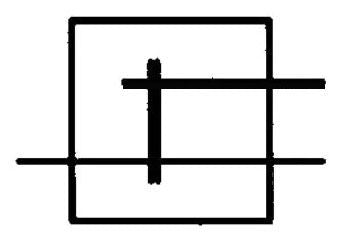

Connection Type: Double Run/Tap
Maximum Insulation: 0.19 Inch
Color: Yellow
Temperature Rating: 194 Deg F
Standard Package: 100 per Carton
Approval: UL
