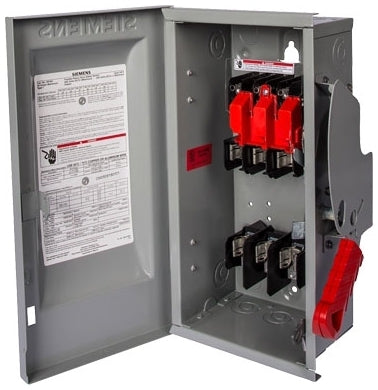

Quick-Make, Quick-Break Operating Mechanism that Ensures Positive Operation; Visible Blade, Double-Break Switching Action; Arc Chutes Dissipate Heat and Prolong Switch Life; Highly Visible Red Handle Grip; Designed for Hook Stick Operation; Defeatable Dual Cover Interlock; Centre Punch Provided for Field Drilling to Allow on Padlocking; Handle Can be Padlocked in the off Position with upto (3) Padlocks with 5/16 Inch Hasps; Generous Top, Bottom and Side Gutters that Meet or Exceed NEC Wire-Bending Space Requirements; Tangential Knockouts Through 600 Amp for Easy Conduit Lineup; Side-Hinged Door that Opens Past 180 Degrees for Easier Wiring; Unique Enclosure Design Increases Rigidity and Prevents Cuts and Scrapes to Conductors and Installer's Hands; Spring Reinforced Fuse Clips that Assure Reliable Contact for Cool Operation; Door Latch Securely Holds Door Closed and Allows Cover Padlocking; Front Removable Mechanical Lugs that are Suitable for CU/AL 60 or 75 Deg C Conductors; Lugs are Field Convertible to Copper Body and to a Wide Variety of Compression Connectors; Hinged Clear Line Terminal Shield with Probe Holes for Inspecting or Testing Line Side Terminals; Embossed Aluminum Name Plate on Heavy Duty Switches Provides Highly Visible On/Off Indication; Drawn Cover for Increased Rigidity and Resistance to Abuse; Top Key Hole and Bottom Mounting Holes Provide Easy 2 or 3 Point Mounting

Specifications:

Type: Heavy Duty Safety, Low Voltage Circuit Protection
AC Voltage Rating: 480/600 Volt
DC Voltage Rating: 250/600 V
Current Rating: 60 Ampere
Power Rating: 5 HP at 480 Volt AC 1-Phase (Standard), 10 HP at 600 Volt AC 1-Phase (Standard), 15 HP at 480/600 Volt AC 3-Phase (Standard), 20 HP at 480 Volt AC 1-Phase, 25 HP at 600 Volt AC 1-Phase, 30 HP at 480 Volt AC 3-Phase, 50 HP at 600 Volt AC 3-Phase, 10 HP at 250 Volt DC, 30 HP at 600 Volt DC
Number of Poles: 3
Number of Wires: 4
Fuse Provision: Fusible
Fuse Type: Class H/J/R, Time Delay
Neutral Type: Solid
Enclosure: NEMA 3R
Size: 11.53 Inch Width x 10.17 Inch Depth x 17.77 Inch Height
Enclosure Material: 304 Stainless Steel
Approval: UL 98
