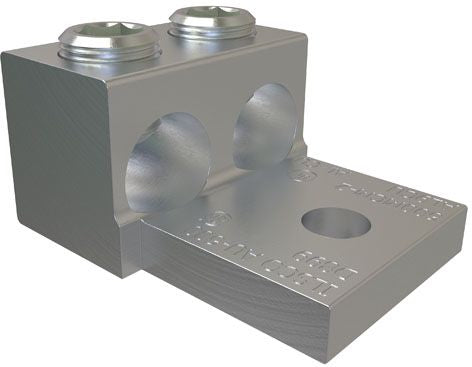

Ilsco AU-600 Mechanical Lug

Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Versatility; RoHS Compliant

Specifications:

Minimum Conductor Size: 2 AWG
Maximum Conductor Size: 600 KCMIL
Conductor Material: Copper/Aluminum
Screw Type: 1/2 Inch Hex Head
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 1.75 Inch Length x 0.437 Inch Thickness
Stud Size: 1/2 Inch
Overall Length: 3.187 Inch
Approval: UL, CSA
