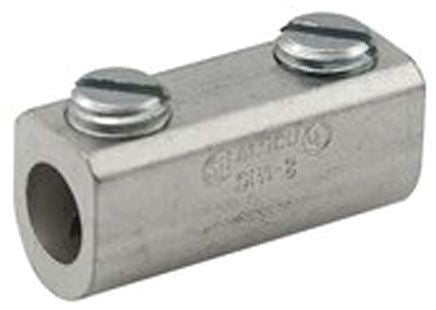

Ilsco SPA-0 Mechanical Connector Splicer/Reducer

Dual Rated; Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Rounded Bottoms; Large Screw Diameters; Wire Stop in Center; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Facilitates Taping; Ensures All Wire Strands are Held Securely; Prevents Dissimilar Metals Coming into Contact; Versatility; RoHS Compliant

Specifications:

Type: In-Line, Dual Rated
Voltage Rating: 2000 Volt
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 1/0 AWG
Conductor Material: Copper/Aluminum
Number of Screws: 2
Screw Size: 7/16 Inch Diameter
Hex Size: 3/16 Inch
Size: 1-29/32 Inch Length x 5/8 Inch Width x 11/16 Inch Height
Body Material: Electro Tin Plated High Strength 6061-T6 Aluminum Alloy
Insulation Type: Non-Insulated
Approval: UL 453G, UL 486A/B, CSA
