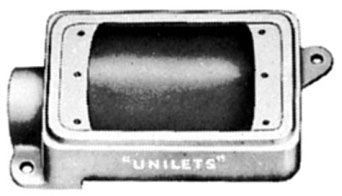

O-Z/Gedney FS-1-75 IMC/Rigid Conduit Cast Hub Device Box

Out of stock
SKU: 34589
Regular price $15.98
OR

Weatherproof, Rain Tight and Dust Tight When Used with Cast Gasketed Covers; Malleable Iron for High Tensile Strength and Ductility, Provides Greater Resistance to Impact and Shock; Malleable Iron Boxes have Ridge Top Construction for Positive Cover/Gasket/Box Fit; Accurately Tapped, Tapered Threads for Tight, Rigid Joints, Ground Continuity; Internal Grounding Screws Standard; Smooth, Rounded Integral Bushing in Each Hub Protects Conductor Insulation; Corrosion Resistant

Specifications:

Height: 5.88 Inch
Width: 2.81 Inch
Depth: 2 Inch
Capacity: 18 Cubic Inch
Number of Gangs: 1
Number of Hubs: 1
Hub Location: (1) End
Hub Size: 3/4 Inch
Material: Zinc Electroplated/Chromate/Epoxy Powder Coated Malleable Iron
Shape: Shallow
Configuration Type: FS
Mounting: Flush
Mounting Hardware: (2) Lugs
Approval: UL 514A/E2527/E18095, CSA C22.2, NEC, CEC
