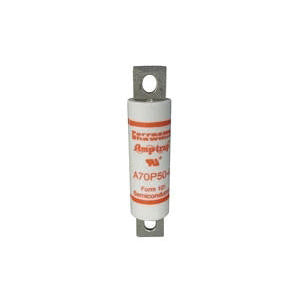

Mersen EP A70P700-4 Semiconductor Protection Fuse
Regular price
$304.81
Couldn't load pickup availability
A70P Amp-trap Form 101 Semiconductor Protection fuses were developed for higher voltage AC and DC drives, UPS systems, reduced voltage motor starters and similar applications where lower I2t and superior reliability were needed. A70P is a very popular fuse, available in a wide range of ratings.
Specifications:
Type: Round, Semiconductor
Characteristics: Very Fast Acting, High Speed
Voltage Rating: 700 Volt AC, 650 Volt DC
Current Rating: 700 Amp
Interrupting Rating: 100 Kiloamp (AC/DC)
Terminal Type: Blade

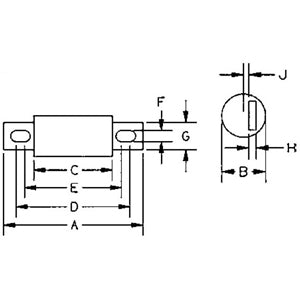

Diameter: 2.88 Inch
Length: 6.81 Inch
Approval: UL
