Pass & Seymour 4760 Locking Device Receptacle

  • Sale
  • Regular price $17.50
Shipping calculated at checkout.


Compact, Impact Resistant Nylon Face and Body are Ultrasonically Welded together for Unrivaled Strength; Face Color Coding by Voltage Facilitates Locating and Mating of Proper Devices, High-Grade Brass Contacts Offer Excellent Conductivity and Heat Rise Resistance; Clearly Marked NEMA Configuration, Rating and Third-Party Listing on Each Unit's Face; 1-Piece, Solid Brass Mounting Strap is Free of Easily Loosened Rivet Found on Other Brand; Side and External Screw Pressure plate Back Wire Capability; RoHS Compliant

Specifications:

Type: Single Locking
Constructional Feature: Impact Resistant
Configuration: L7-15R
Voltage Rating: 277 Volt AC
Current Rating: 15 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding

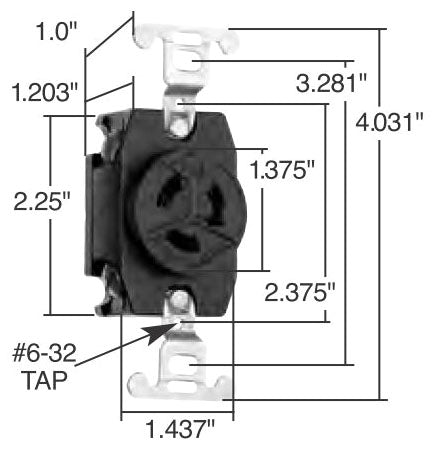

Face Outer Diameter: 1.375 Inch
Material: Nylon
Wiring: Back
Mounting: 1-Piece Solid Brass Strap
Approval: UL, UL 498, CSA C22.2


Documents:
