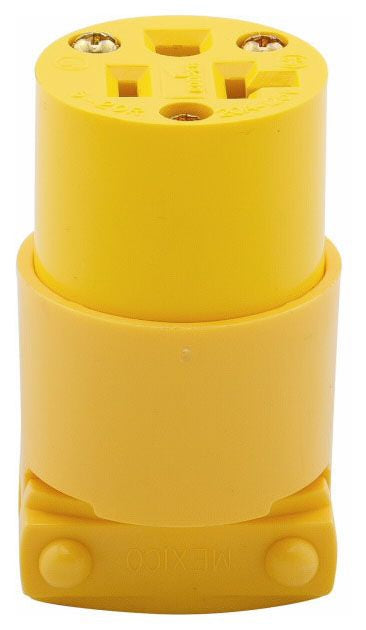

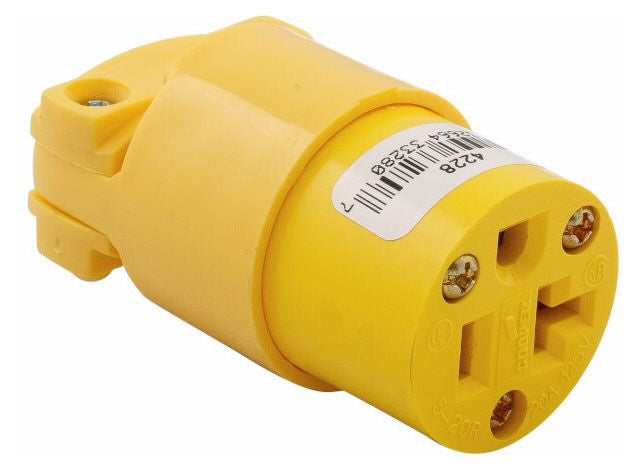

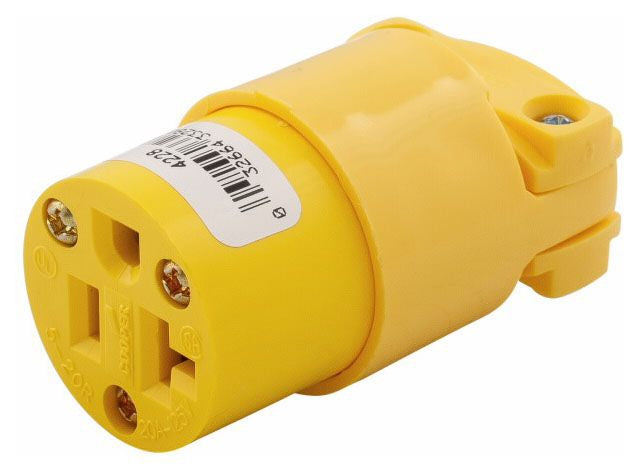

Arrow Hart 4228-BOX Straight Blade Connector

Vinyl Connectors Resist Chemical Attack and are Less Brittle in Extremely Low Temperatures; Terminal Screws Backed Out and Ready for Wiring; Terminals in Individual Chambers to Positively Insulate Conductors; Terminal Screw Clamps are Designed to Contain Wire and Prevent Binding; Combination Slot/Phillips-Head Mounting and Terminal Screws for Installation Flexibility; RoHS Compliant

Specifications:

Type: Heavy Duty
Constructional Feature: Chemical Resistant
Configuration: NEMA 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Color: Yellow
Cord Size: 0.25 to 0.66 Inch
Material: Thermoplastic
Approval: UL 498/E15012, CSA C22.2, NOM 426, Federal Specification 6221-02
