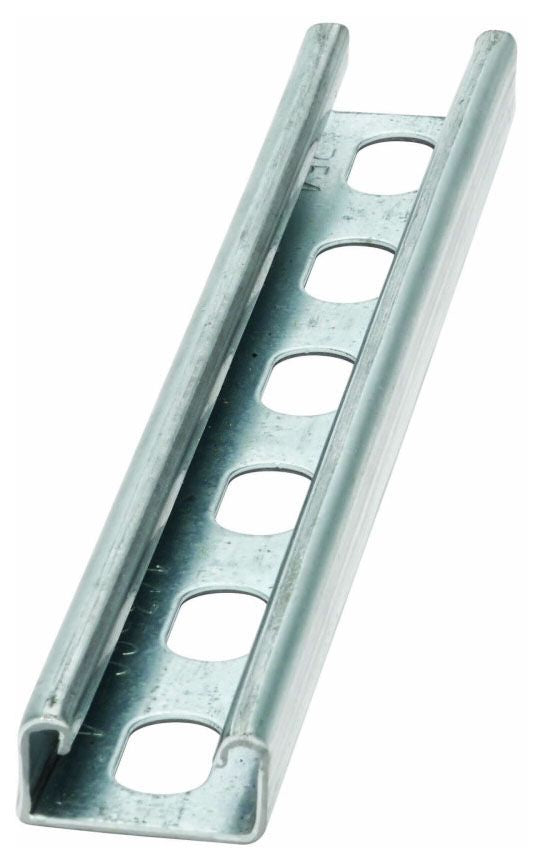

B-Line B54SH-120-GLV Channel

Eatonâ€s B-Line series strut system, or bolted framing, gives design engineers, contractors and installers the quality, flexibility and smart design they need to meet the most demanding construction standards: Cable management support, Pipe and conduit support, HVAC duct support, Strut racking systems, Ceiling grids, Machine guarding and Panel stands. Whether the need is for an electrical strut support, mechanical channel support or datacomm support, itâ€s easy to find the right B-Line series system for any application. Specify and use B-Line series strut system on your next project

Specifications:

Type: Single
Number of Channels: 1
Configuration: Slotted
Cross Section Area: 0.299 Square Inch
Thickness: 14 Gauge
Length: 120 Inch
Width: 1-5/8 Inch
Height: 13/16 Inch
Center Spacing: 2 Inch
Hole/Slot Size: 9/16 Inch x 1-1/8 Inch
Process: Cold Formed
Finish: Galvanized
Column Load Rating: 336 Pound (Slot Face)
Beam Load Rating: 93 Pound
Deflection: 2.703 Inch
Weight: 0.97 Pound per Foot
