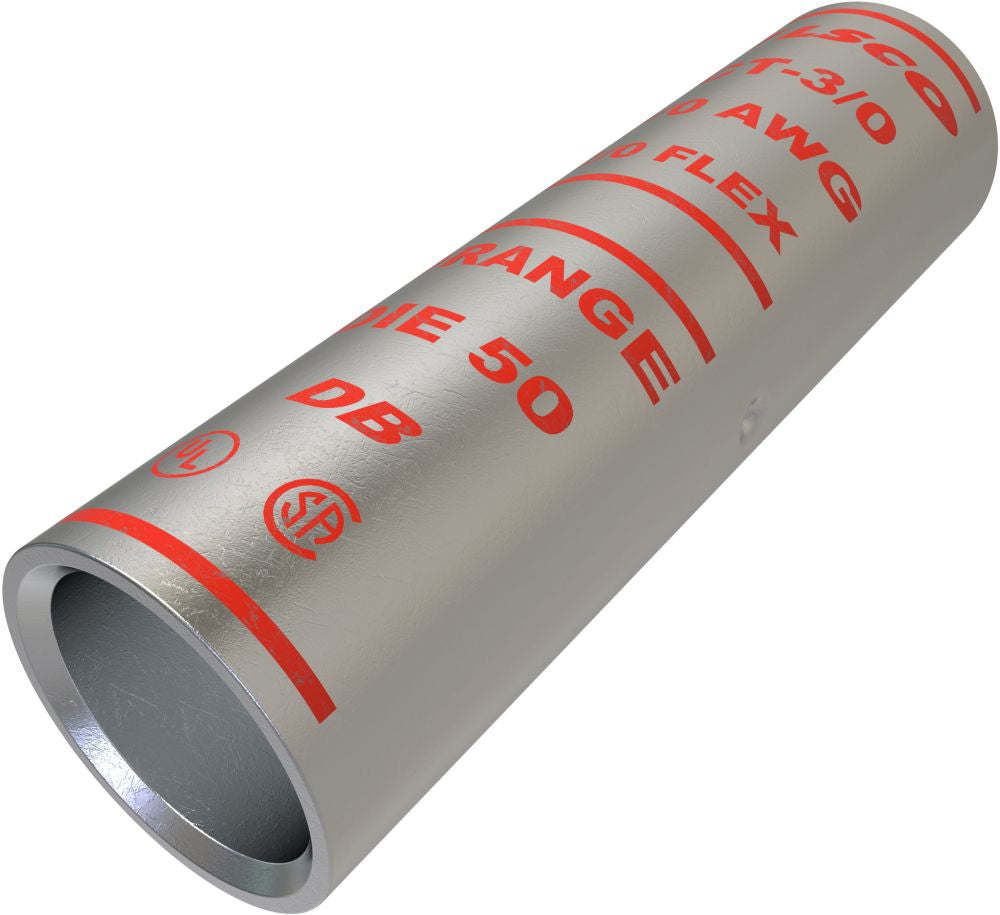

Ilsco CT-3/0 Compression Cable Sleeve
Regular price
$6.14
Couldn't load pickup availability
Manufactured from High Strength Seamless Copper Tubing Offers Maximum Conductivity and Excellent Crimping Characteristics; Electro Tin Plated Provides Low Contact Resistance; Chamfered Entry for Easy Conductor Insertion; Color Coded Identifies the Proper Compression Die; Application Versatility; Reduces Inventory Requirements; RoHS Compliant
Specifications:
Type: Center Wire Stop
Voltage Rating: 35 KV
Conductor Size: 3/0 AWG
Conductor Material: Copper
Color Code: Orange
Barrel Type: Short with Chamfered End
Length: 2.125 Inch
Inner Diameter: 0.484 Inch
Outer Diameter: 0.609 Inch
Body Material: Electro-Tin Plated High Strength Seamless Copper
Approval: UL 453G, UL 486A/B, CSA
