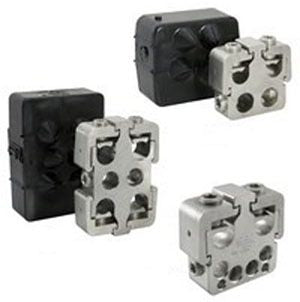

Ilsco PTA4-750-500-W/C Multi-Tap Connector
Regular price
$312.59
Couldn't load pickup availability
Provides Low Contact Resistance; Ensures Reliability for Copper or Aluminum Conductors; Saves Space and Reduces Installation Time; Permits Inventories to be Kept to a Minimum; Provides Efficient Use and Flexibility in the Field; No Need to Break the Feeder Cables; Eliminates Taping; RoHS Compliant
Specifications:
Voltage Rating: 600 V
Number of Ports: 2
Cable Entry: In-Line
Conductor Material: Copper/Aluminum
Minimum Conductor Size: (4) 350 KCMIL (Main), (2) 4 AWG (Tap)
Maximum Conductor Size: (4) 750 KCMIL (Main), (2) 500 KCMIL (Tap)
Body Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Approval: UL 453G, UL 486A/B, CSA
