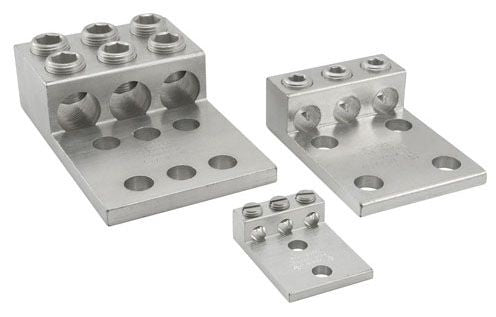

Ilsco T3A2-0 Mechanical Lug

Dual Rated; Manufactured from High Strength 6061-T6 Aluminum Alloy; Electro-Tin Plated; Chamfered Wire Entry; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; Must be Mounted with a Minimum of 2 Bolts; Rated to 90 Deg C; Suitable for Use with Either Copper or Aluminum Conductors; Provides Low Contact Resistance; Provides Ease of Installation; Versatility; RoHS Compliant

Specifications:

Type: Chamfered Wire Entry
Number of Conductors: 3
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 1/0 AWG
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: Slot
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 2-5/32 Inch L x 1-15/16 Inch W x 1/4 Inch Thk
Stud Size: 3/8 Inch
Overall Length: 2-29/32 Inch
Approval: UL 453G, UL 486A/B, CSA
