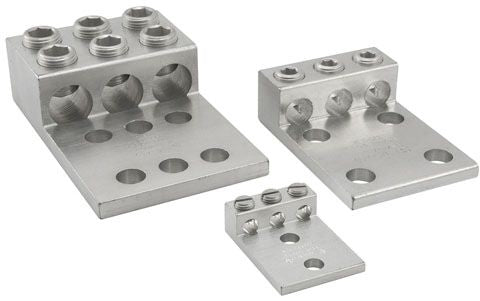

Ilsco T3A2-2 Mechanical Lug
Regular price
$20.04
Couldn't load pickup availability
Provides Low Contact Resistance; Provides Ease of Installation; Must be Mounted with a Minimum of 2 Bolts; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant
Specifications:
Type: Chamfered Wire Entry
Number of Conductors: 3
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 2 AWG
Conductor Material: Aluminum/Copper
Pad Type: Straight
Screw Type: Slot
Material: Electro-Tin Plated High Strength 6061-T6 Aluminum Alloy
Number of Pad Holes: 2
Pad Size: 1-11/16 Inch L x 1-19/32 Inch W x 3/16 Inch Thk
Stud Size: 5/16 Inch
Overall Length: 2-3/16 Inch
Approval: UL 453G, UL 486A/B, CSA
