IDEAL Electrical 61-532 Circuit Breaker Finder

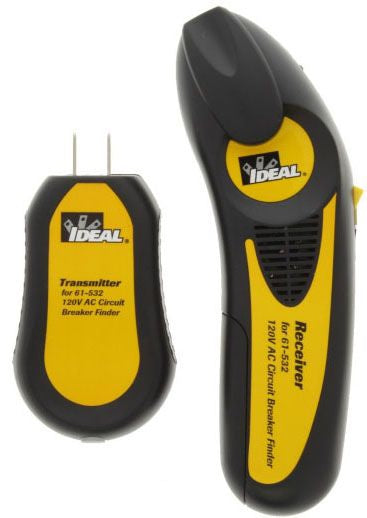

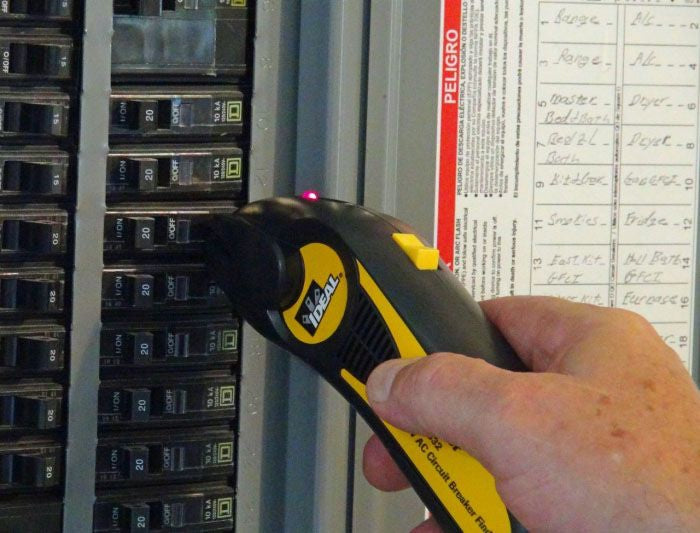

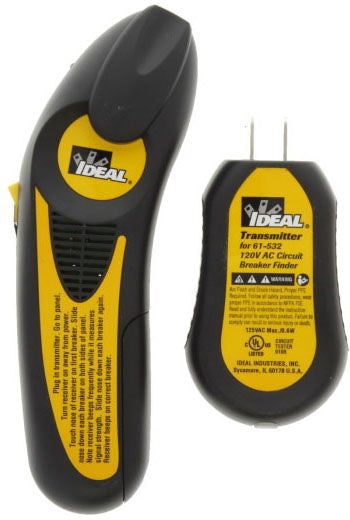

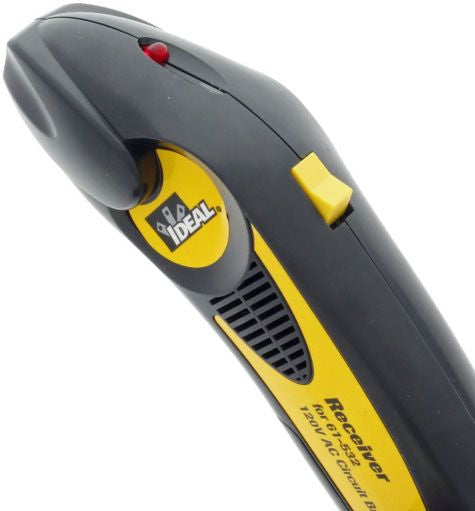

The 61-532 from IDEAL is a 120V AC circuit breaker finder that automatically identifies a circuit breaker or fuse protecting a live branch circuit. It consists of a transmitter and a receiver. The transmitter identifies the presence of power via a red LED and sends a signal over the conductors when connected to an energized circuit. The receiver reads the transmitter's signal and identifies the breaker/fuse energizing the circuit by illuminating a red LED and emitting continuous beep once it determines the breaker/fuse with the strongest signal.

Specifications:

Voltage Rating: 100 to 140 VAC
Frequency Range: 47 to 63 Hz
Indication Type: Visual, Audible
Operating Temperature: 0 to 50 Deg C
Function Type: Verifies Presence of Power
Approval: UL (Canada and US), CE
