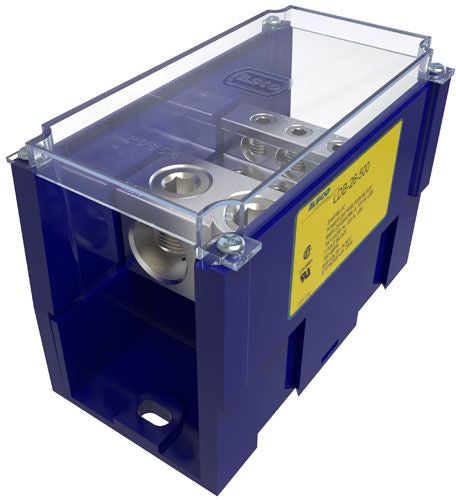

Ilsco LDB-26-500 Power Distribution Block

Modular Design Simplifies Stocking Combines any Number of Blocks with Multiple Conductor Ranges into the Specific Configuration Required for the Job; Easy to Assemble Unique Locking Feature Allows Individual Blocks to be Combined Quickly without Special Tools; Electro Tin Plated Aluminum Suitable for Use with Both Copper and Aluminum Conductors in any Combination; Clear Cover Included Permits Visual Inspection; Multiple Conductor Capability; RoHS Compliant

Specifications:

Type: Modular
Voltage Rating: 600 V
Current Rating: 760 Ampere
Number of Primary Openings per Pole: 2
Primary Opening Wire Size: 4 AWG to 500 KCMIL
Number of Secondary Openings per Pole: 6
Secondary Opening Wire Size: 14 to 2/0 AWG
Conductor Material: Aluminum/Copper
Cover Type: Clear
Size: 3 Inch L x 5-1/2 Inch W x 3-7/16 Inch H
Temperature Rating: 90 Deg C
Connector Material: Electro-Tin Plated 6061-T6 Aluminum Alloy
Approval: UL 1059, CSA
