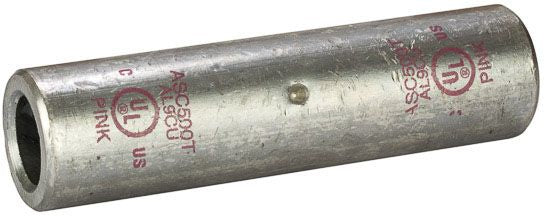

NSi Industries ASC500T Compression Cable Splice
Regular price
$0.18
Couldn't load pickup availability
Produced from High Conductivity Aluminum Tubing; Center Stop Assures Proper Cable Installation; Electro Tin Plated for Corrosion Resistance; Color Coded and Marked with Die Index Information; Pre-Filled with Oxide Inhibitor and Capped with Color Coded Cap; Listed for 35 Kilovolt Maximum When Properly Installed to Cable Manufactures Specifications
Specifications:
Type: Center Wire Stop
Conductor Size: 500 KCMIL
Conductor Material: Aluminum/Copper
Color Code: Pink
Barrel Type: Standard
Length: 5 Inch
Inner Diameter: 0.84 Inch
Outer Diameter: 1.312 Inch
Body Material: Tin Plated Aluminum
Approval: UL (Canada and US)
