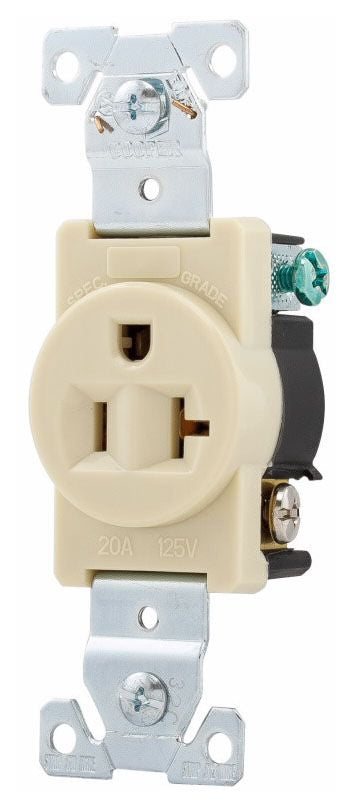

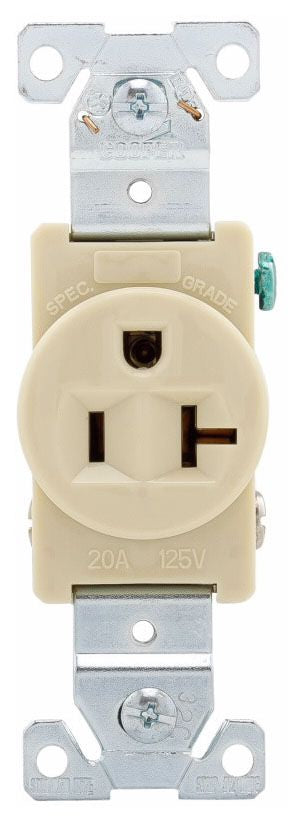

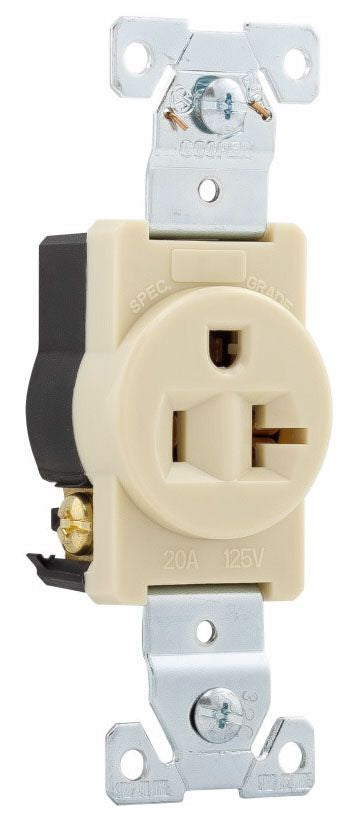

Arrow Hart 1877V-BOX Straight Blade Receptacle

High performance receptacles for the most demanding of environments Arrow Hart’s offering of straight blade receptacles cover the full range of hospital, industrial, construction and commercial grades along with special solutions like corrosion resistant, severe duty insulated and watertight straight blade receptacles for complex environments. Commercial & construction grade straight blade receptacles Engineered for safe, reliable performance, these UL498 and federal specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.

Specifications:

Type: Single, Heavy Duty, Standard
Constructional Feature: Chemical/Impact Resistant
Configuration: NEMA 5-20R
Voltage Rating: 125 Volt AC
Current Rating: 20 Amp
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Nylon (Face), PVC (Bottom)
Color: Ivory
Wiring: Side
Grade: Commercial
Approval: UL (Canada and US), UL 498, CSA C22.2, NOM 426, Federal Specification 6233-01
