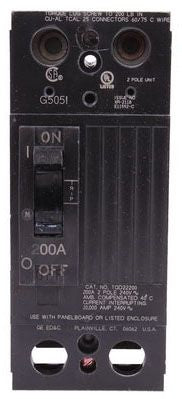

The TQD Line of Devices Include Thermal Magnetic Molded Case Circuit Breakers and Molded Case Switches; The Devices are Complete with Cu/Al Line and Load Lugs

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Frame Type: TQD
Voltage Rating: 240 V
Maximum AC Voltage Rating: 240 V
Current Rating: 200 Ampere
Number of Poles: 2
Interrupting Rating: 10 Kiloampere at 120/240 VAC
Terminal Type: Copper/Aluminum Line Side Lug
Size: 2-3/4 Inch W x 2-5/8 Inch D x 6-9/16 Inch H
Approval: UL
