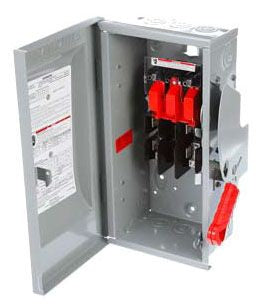

Rugged Construction, Reliable Performance, Continuity of Service and Ease of Maintenance are Emphasized; Available Fault Currents Higher than 10000 Amp are Likely to be Encountered, Such as in Manufacturing Plants, Mass Production Industries, and Commercial, Institution-AL and Other Large Buildings Served by Network Systems or Transformers of Higher Capacities; Voidable Dual Cover Interlocks Standard on All Heavy Duty Switches

Specifications:

Type: Non-Fusible, Heavy Duty
Voltage Rating: 480/600 Volt AC, 250 Volt DC
Current Rating: 200 Amp
Power Rating: 15 HP at 240 Volt AC 1-Phase, 60 HP at 240 Volt AC 3-Phase, 50 HP at 480 Volt AC 1-Phase, 125 HP at 480 Volt AC 3-Phase, 50 HP at 600 Volt AC 1-Phase, 150 HP at 600 Volt AC 3-Phase, 40 HP at 250 Volt DC, 50 HP at 600 Volt DC
Circuit Configuration: 1 or 3 Phase
Number of Poles: 3
Fuse Type: Class H, Class K, Class R
Operator Type: Insulating Grip
Conductor Material: Copper/Aluminum
Conductor Size: 6 AWG to 250 KCMIL
Enclosure Material: Steel
Enclosure Type: NEMA 1
Terminal Type: Lug
Size: 14.62 Inch Width x 6.36 Inch Depth x 29.9 Inch Height
Approval: UL
