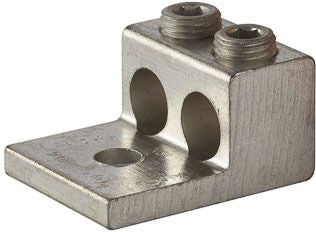

NSi Industries 2-2/0T Mechanical Connector Lug
Regular price
$5.76
Couldn't load pickup availability
Versatile and Reusable Set-Screw Connectors Made of 6061T-6 Aluminum Alloy; Electro Tin Plated for Low Contact Resistance; For Use with Copper/Aluminum Conductors
Specifications:
Type: Set Screw
Number of Conductors: 2
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 2/0 AWG
Conductor Material: Copper/Aluminum
Pad Type: Straight
Screw Type: 3/16 Inch Hex
Material: Electro Tin Plated 6061-T6 Aluminum Alloy
Number of Pad Holes: 1
Pad Size: 0.85 Inch Length x 1.25 Inch Width x 0.19 Inch Thickness
Stud Size: 0.265 Inch
Overall Length: 1.47 Inch
Approval: UL 486A/B, UL (Canada and US)
