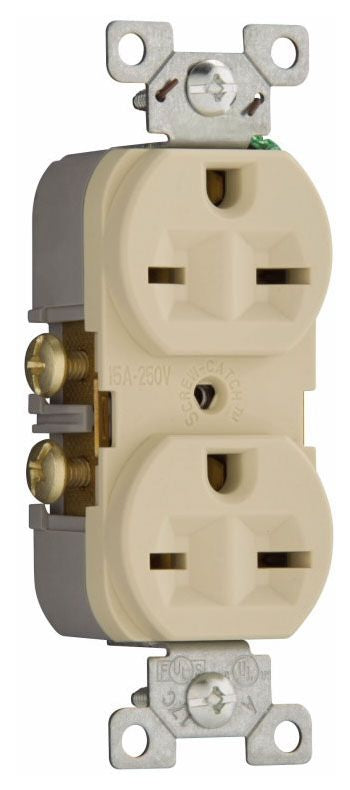

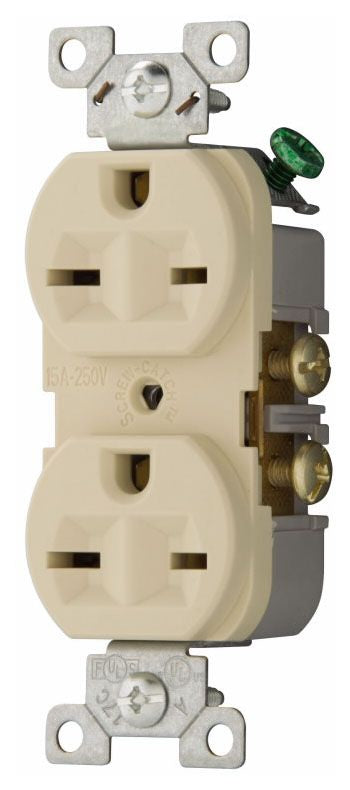

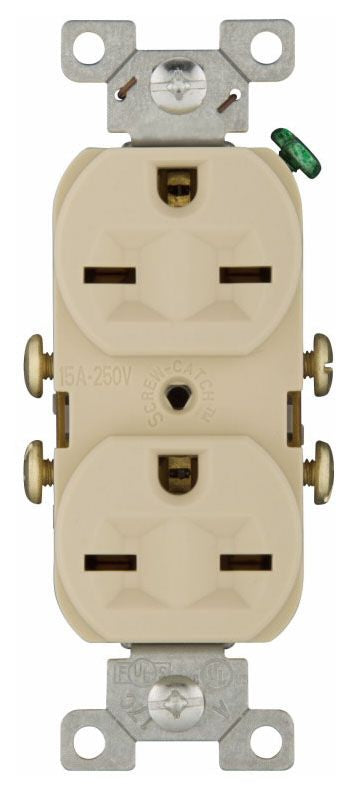

Arrow Hart 826V-BOX Straight Blade Receptacle

High performance receptacles for the most demanding of environments Arrow Hart’s offering of straight blade receptacles cover the full range of hospital, industrial, construction and commercial grades along with special solutions like corrosion resistant, severe duty insulated and watertight straight blade receptacles for complex environments. Arrow Hart’s feature rich line of hospital grade receptacles have been designed to meet and exceed the demanding requirements of UL498 and federal specification WC-596 to provide a consistent means of connectivity where downtime can be critical.

Specifications:

Type: Duplex
Constructional Feature: Chemical Resistant, Impact Resistant
Configuration: 6-15R
Voltage Rating: 250 VAC
Current Rating: 15 Ampere
Number of Poles: 2
Number of Wires: 3
Ground Type: Grounding
Material: Polycarbonate Face/Base
Color: Ivory
Wiring: Side
Grade: Commercial
Approval: UL 498, CSA C22.2, NOM 426
