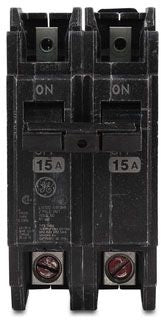

Q-Line Circuit Breakers are 1-Inch Wide per Pole, Compact, Thermal-Magnetic Devices Designed for Residential and Commercial Applications; The QC Breakers are Lug-Lug Versions of the Q-Line and are Available for 35 Millimeter DIN Rail Mounting; All Q-Line Circuit Breakers Feature Quick-Make/Quick-Break Mechanisms, Common Trip Bars and Easy to Spot Trip Indication to Ensure Safety and Reliability

Specifications:

Type: Molded Case, Fixed Thermal Magnetic, Internal Common Trip
Number of Poles: 2
Voltage Rating: 120/240 VAC
Current Rating: 80 Ampere
Interrupting Rating: 10 Kiloampere
Terminal Type: Copper/Aluminum Line and Load Lug
Wire Size: 6 to 1/0 AWG (Copper)/4 to 1/0 AWG (Aluminum)
Used On: Panelboard
Size: 2 Inch W x 2-3/8 Inch D x 3-9/32 Inch H
Approval: UL
