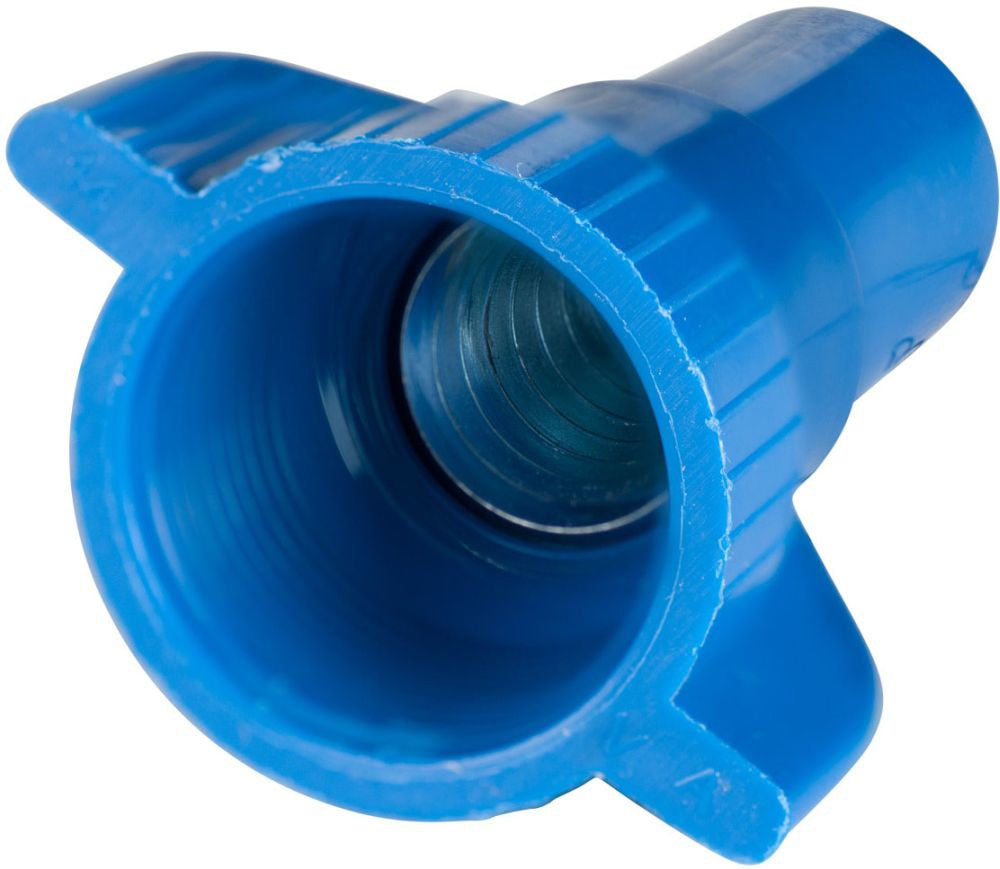

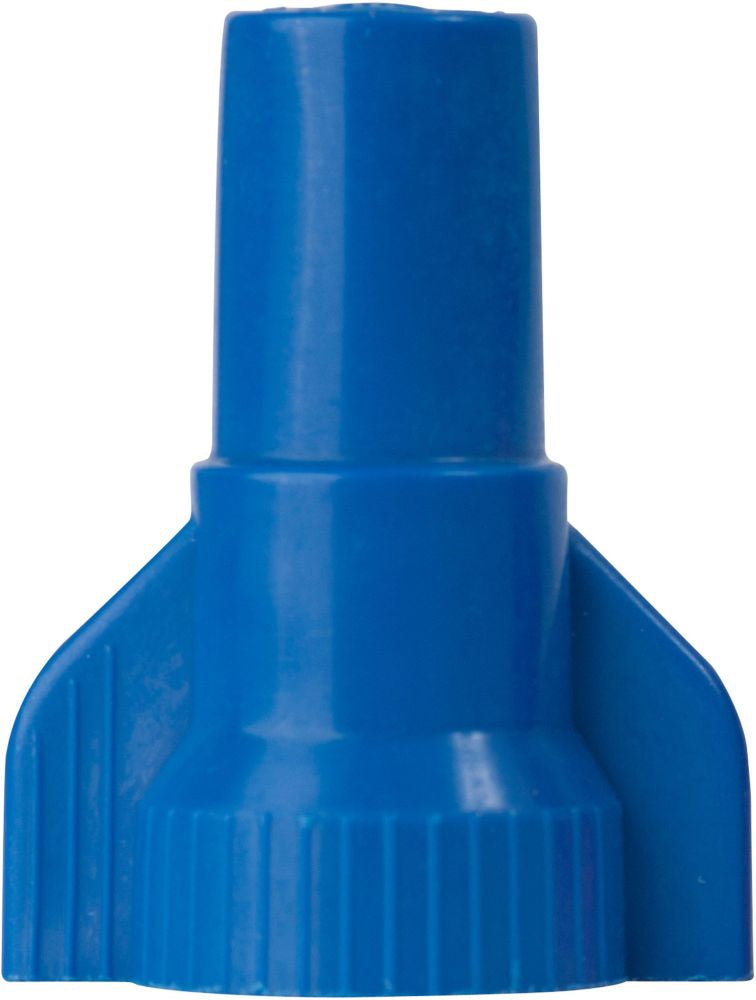

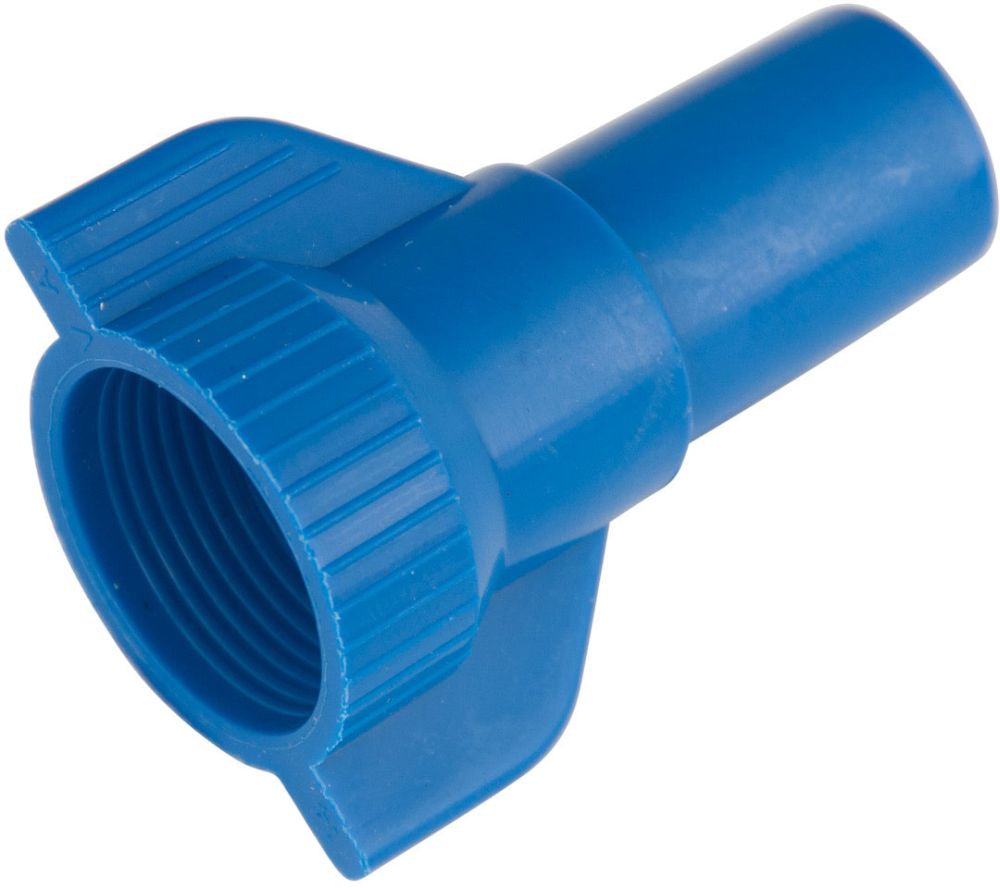

Gardner Bender 10-089 Wire Connector

GB's WingGard twist-on wire connectors offer unsurpassed quality and durability in a high-leverage, easy-on, wing-type design. These hardworking connectors offer a wide range of connection options essentially ensuring that one size can do the job of multiple standard connectors. The swept wings provide added turning torque and reduce the strain of multiple applications. The thermoplastic shell provides strength and resistance to chemicals while a long skirt prevents exposure of bare wire. The zinc-plated square wire-spring inside instantly adjusts to the shape and size of the splice upon insertion ensuring a long-lasting connection that resists corrosion and exceeds UL standards for dielectric strength and wire pullout force.

Specifications:

Type: Offset Wing
Voltage Rating: 600 Volt (Building Wire), 1000 Volt (Light Fixture/Luminaries/Sign)
Wire Type: Copper
Wire Size: 14 to 6 AWG
Minimum Wire Combination Size: (3) #12
Maximum Wire Combination Size: (1) #6, (2) #8
Spring Type: Square Wire
Shell Material: Thermoplastic
Color: Blue
Temperature Rating: 221 Deg F
Standard Package: 50 per Box
Approval: UL (Canada and US)
