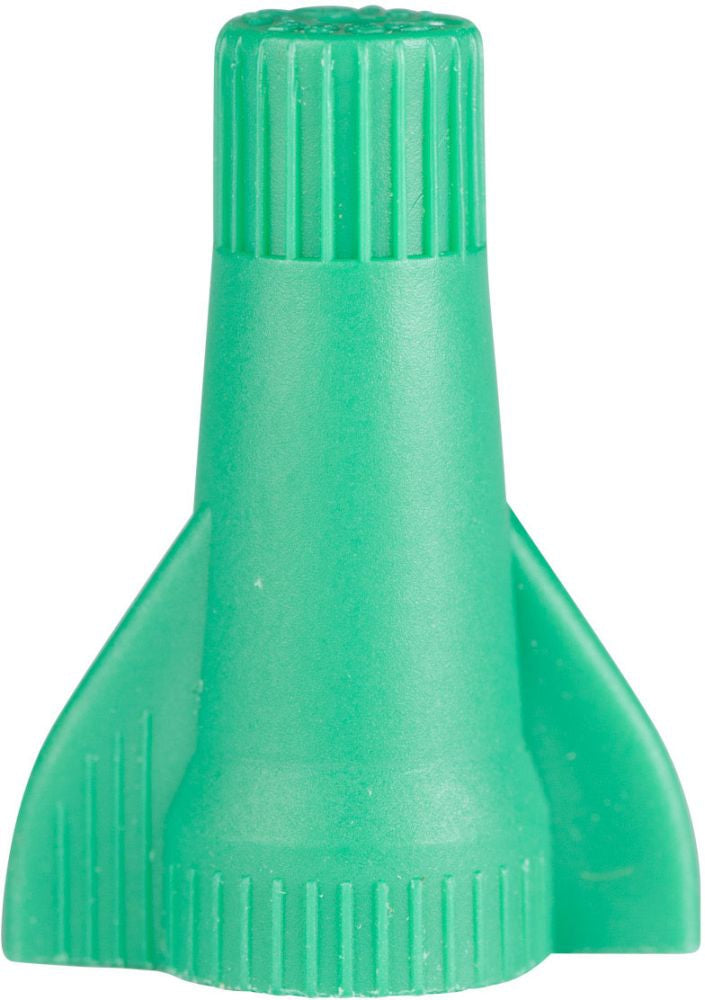

Gardner Bender 10-095 Grounding Wire Connector

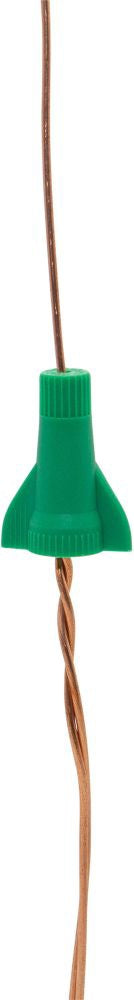

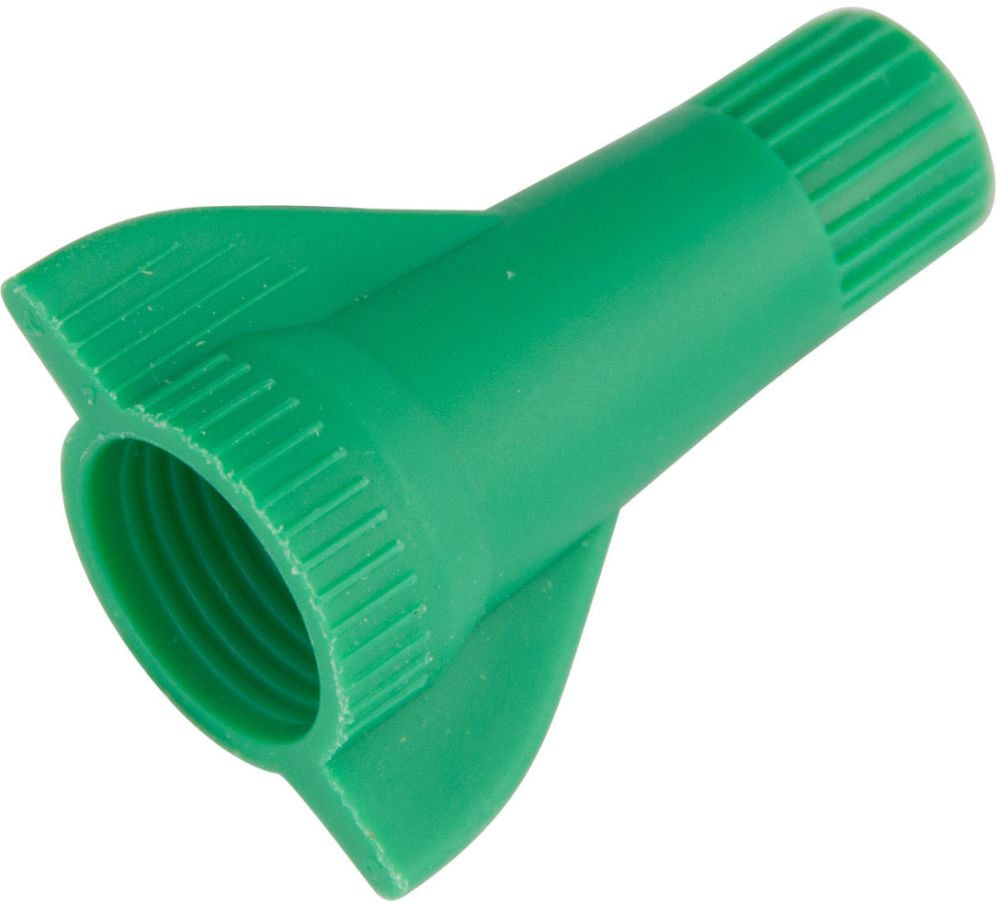

Specifically designed for making positive ground connections with a hole in the tip of the connector to feed ground wire through. GreenGard connectors feature the same live-action as GB WingGuard connectors with knurled wings for a sure grip and greater twisting leverage/torque. In addition GreenGard connectors offer added plating protection for corrosion resistance in grounding applications. Inside the connector a zinc-plated square wire spring ensures a secure connection that resists corrosion. The thermoplastic shell is designed for long-lasting strength and resists chemicals while the deep skirt supports smooth wire entry and coverage of stripped wires. Use for: Ground applications, Building wire, Lighting fixtures, Luminaries and signs.

Specifications:

Type: Offset Wing
Voltage Rating: 600 V
Wire Type: Copper (Solid)
Wire Size: 14 to 10 AWG
Minimum Wire Combination Size: (2) #14
Maximum Wire Combination Size: (4) #12
Spring Type: Square Wire
Shell Material: Thermoplastic
Color: Green

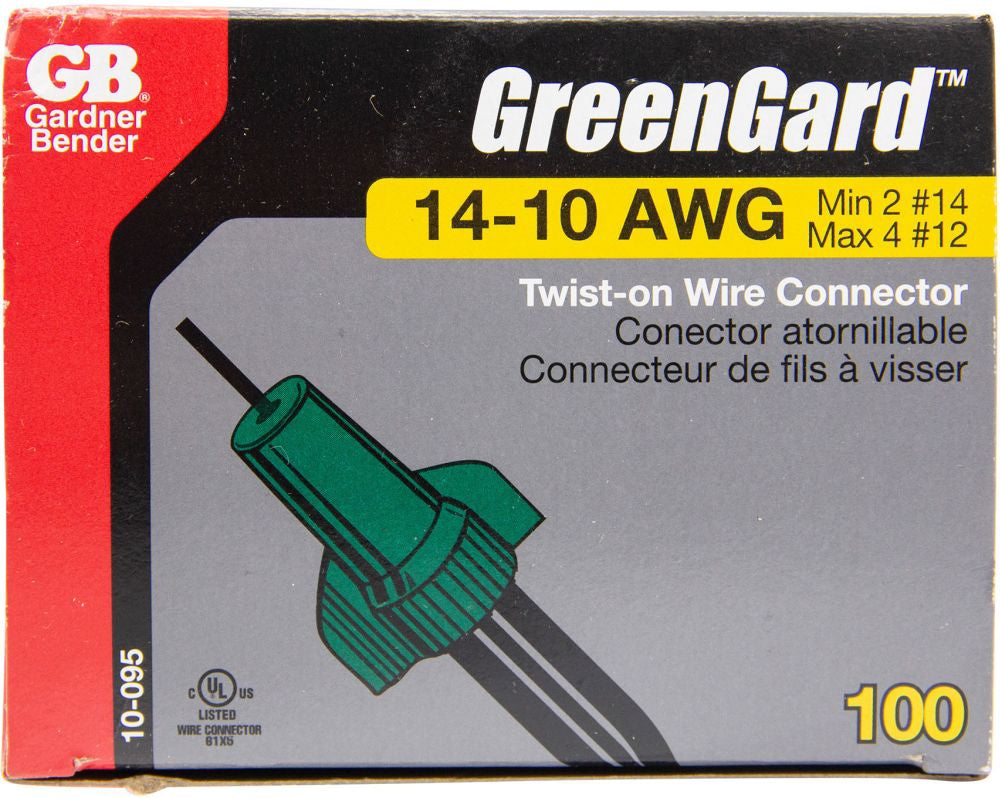

Standard Package: 100 per Box
Approval: UL, CSA
