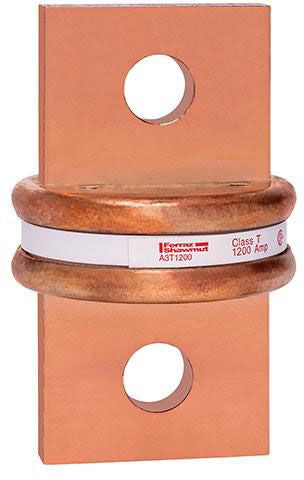

Mersen EP A3T1200 Low Voltage UL Power Fuse
Regular price
$292.95
Couldn't load pickup availability
Fast-acting A3T Class T fuses combine two highly desirable features - high current limitation and a small physical size. Their unique dimensions prevent the substitution of other fuses with lower voltage ratings or current-limiting capability. These fuses have glass melamine bodies for superior dimensional stability and catalog numbers stamped into the blades for permanent identification.
Specifications:
Type: Class T
Characteristics: Fast Acting
Voltage Rating: 300 VAC, 160 VDC
Current Rating: 1200 Ampere
Interrupting Rating: 200 Kiloampere (AC), 50 Kiloampere (DC)
Terminal Type: Blade
Diameter: 2.52 Inch
Length: 4 Inch
Approval: UL 248/248-15, CSA C22.2
