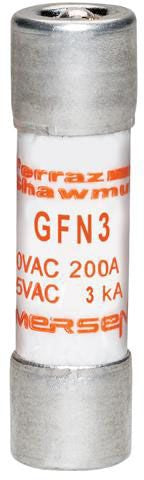

GFN midget indicating fuses are available in ratings from 1/10 through 30A. These time-delay fuses have built-in blown fuse indicators which pop out at the end of the fuse to visually indicate when the fuse has operated to open the circuit. Indicators may be used to trip a switch for remote as well as visual annunciation.

Specifications:

Type: Pin Indicating
Characteristics: 12 Second Time Delay (200 Percent Rated Load)
Voltage Rating: 250 Volt AC
Current Rating: 3 Amp
Interrupting Rating: 200 Kiloamp
Terminal Type: Ferrule
Diameter: 0.41 Inch
Length: 1.5 Inch
Approval: UL 248-14, CSA C22.2
