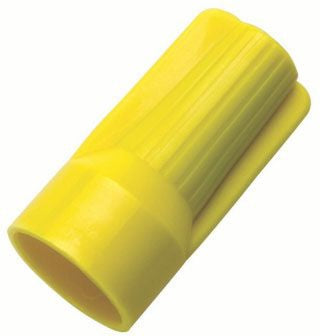

IDEAL Electrical B1-250JR Wire Connector

Out of stock
SKU: 39846
Regular price $0.14

The B-CAP Wire Connector gets you in those hard-to reach spots comfortably, especially when you’re retrofitting or updating. Slim, classic fins and an expanding interior spring give the B-CAP a secure grip with extra leverage, making it the most compact connector on the market for up to 5 #12 (Red Model B2). The unique, space-saving profile of the B-CAP makes it perfect for retrofit work and shallow boxes. The B-CAP also features a tough, flame-retardant shell that withstands environmental extremes with a deep skirt that provides maximum dielectric protection to prevent flash-over and turned-back strands. Additionally, the B-CAP can be removed for repeat usage on the same size or larger wire combinations.


Type: Low Profile Fin, Non-Metallic
Voltage Rating: 600 Volt, 1000 Volt (Sign/Luminaires)
Wire Type: Copper
Wire Size: 22 to 10 AWG
Minimum Wire Combination Size: (3) #20
Maximum Wire Combination Size: (3) #12
Spring Type: Live Action
Color: Yellow
Temperature Rating: 221 Deg F
Standard Package: 250 per Jar
Approval: UL, CSA, CE
