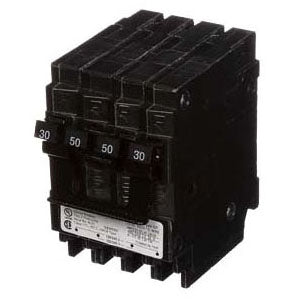

Plug-In or Bolt-On Branch Circuit Breakers for Siemens Single Phase Load Centers; Saving Money-Two Safety Devices Combined into One; LED Trip Indicator-a Siemens Exclusive; Both Lugs at the Same Angle for Easier Wiring

Specifications:

Type: Molded Case, Thermal and Fixed Magnetic Trip, Quadplex, Common Trip
Number of Poles: (2) Inside, (2) Outside
Voltage Rating: 120/240 VAC at 50/60 Hz
Current Rating: 50 Ampere (Inside), 30 Ampere (Outside)
Interrupting Rating: 10 Kiloamp
Terminal Type: Load Lug
Wire Size: 8 to 6 AWG (Copper), 8 to 4 AWG (Aluminum) Inside, 14 to 6 AWG (Copper/Aluminum) Outside
Mounting: Plug-In
Used On: Loadcenter
Size: 2 Inch W x 2.06 Inch D x 3.12 Inch H
Approval: UL 489, CSA C22.2
