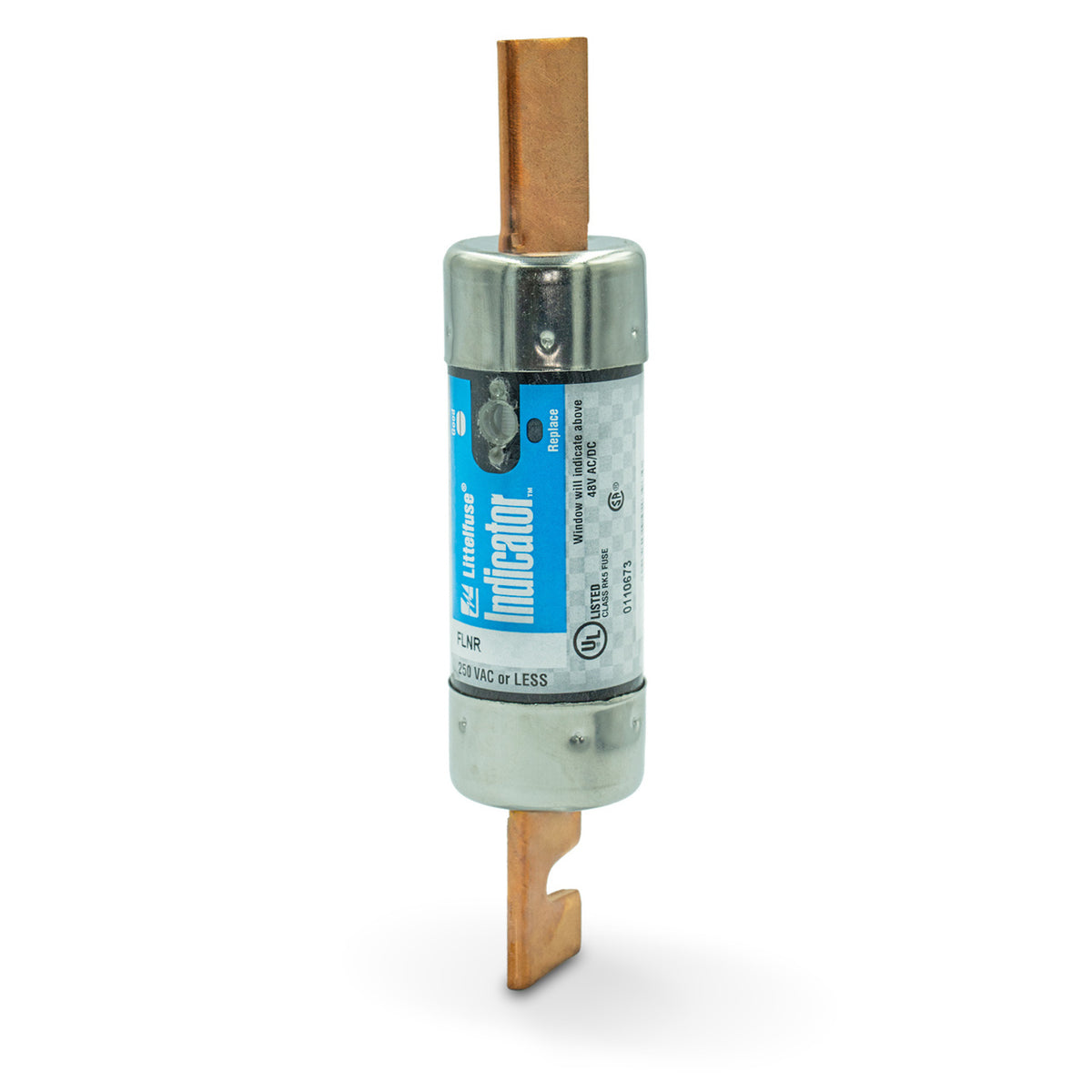

Littelfuse FLNR_ID Indicator fuses provide visual blown fuse indication at a glance. The patented state-of-the-art solid state design provides maximum reliability and superior performance characteristics in a true dual-element design. The use of Indicator fuses reduces down-time, nuisance opening, increases safety, and can save thousands of dollars in lost production time.

Specifications:

Type: Class RK5
Characteristics: Dual Element, Time Delay
Voltage Rating: 250 VAC/125 VDC
Current Rating: 200 Ampere
Interrupting Rating: 200000 Ampere (Symmetrical), 20000 Ampere (DC)
Terminal Type: Blade
Diameter: 1-19/32 Inch
Length: 7-1/8 Inch
Approval: UL 248-12, CSA, QPL-WF-1814, CE
