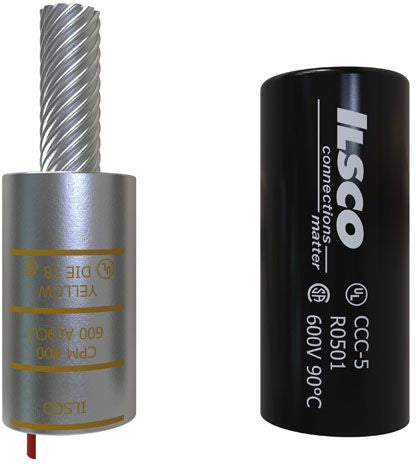

Ilsco CPM-600 Pigtail Adapter

Barrel Manufactured from High Strength Aluminum Alloy Allows Insertion into Equipment Supplied with Either Copper or Aluminum Connector; Pigtail Manufactured from High Conductivity Copper Provides Maximum Conductivity and Excellent Crimping Characteristic; Chamfered Barrel Provides Easy Conductor Insertion; Clearly Marked with Wire Size and Die Index for ILSCO Tools, Proper Number and Location of Crimp Provides Easy Identification and Tooling Recommendation; Prefilled with De-Ox Prevents Oxides from Forming; Color Coded End Caps Inserted in Barrel Prevents Foreign Materials from Entering the Connector Prior to Usage and Color Code Identifies the Proper Compression Die; Supplied with Insulating Cover Eliminates Taping; Rated for Full Ampacity of Incoming Conductor; Ensures Reliability for Copper and Aluminum Conductor; RoHS Compliant

Specifications:

Type: Pigtail
Voltage Rating: 600 V
Conductor Material: Copper/Aluminum
Conductor Size: 600 KCMIL
Material: High Strength Aluminum Alloy Barrel, High Conductivity Copper Pigtail
Pin Size: 11/16 Inch Dia x 1-7/8 Inch L
Cover Size: 3-3/32 Inch L
Overall Length: 4-5/8 Inch
Approval: UL 486A/B, CSA
