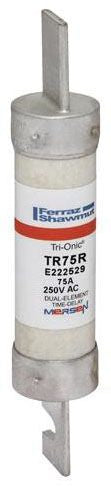

Mersen EP TR75R Low Voltage UL Power Fuse

Out of stock
SKU: 40707
Regular price $25.62
OR

With advanced material technology added to the existing product, the Tri-Onic TR current-limiting time-delay fuses are engineered for over current protection of motors and transformers, service entrance equipment, feeder and branch circuits. Tri-Onic fuse's proven time-delay characteristic safely handles harmless starting currents and inrush currents associated with today's motors and transformers. Now available with optional SmartSpot blown fuse indication technology.

Specifications:

Type: Class RK5
Characteristics: Time Delay
Voltage Rating: 250 Volt AC/DC
Current Rating: 75 Amp
Interrupting Rating: 200 Kiloamp (AC), 20 Kiloamp (DC)
Terminal Type: Blade
Diameter: 1-1/16 Inch
Length: 5-7/8 Inch
Approval: UL 248-12, CSA C22.2, CE
