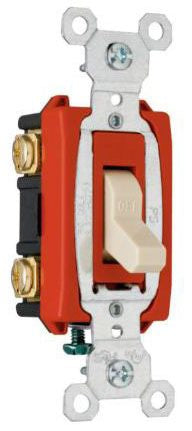

Pass & Seymour CSB20AC2W Toggle Switch

  • Sale
  • Regular price $11.14
Shipping calculated at checkout.


One-Piece Brass Alloy Contact Arm for Reliable Electrical Performance; One-Piece Steel Strap with Integral Ground is Plated for Corrosion Resistance; High Strength Thermoplastic Polycarbonate Toggle Resists Breaking and Chipping Under Heavy Abuse; Heavy Duty Toggle Bumpers for Smooth and Quiet Operation; Back Body Made of Glass-Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Cam Designed for Fast Make with Positive Break Action to Minimize Arcing and Prolong Switch Life; Oversized Silver Alloy Contacts for Longer Dependable Switch Life; Tri-Drive Terminal and Mounting Screws

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Operation Type: 2-Pole
Material: Thermoplastic Polycarbonate (Toggle), Glass Reinforced Nylon (Back Body), Steel (Strap), Brass Alloy (Contact Arm)
Color: White
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Application: Education, Institutional, Hospitality/Lodging, Retail, Multiple Dwelling, Office
Approval: UL 20, CSA C22.2, FSUL WS896
