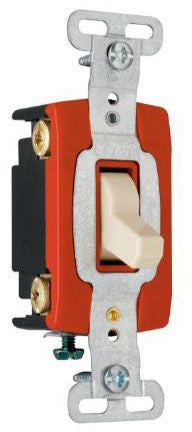

Pass & Seymour CSB20AC4I Toggle Switch

  • Sale
  • Regular price $34.84
  • 4 available
Shipping calculated at checkout.


One-Piece Brass Alloy Contact Arm for Reliable Electrical Performance; One-Piece Steel Strap with Integral Ground is Plated for Corrosion Resistance; High Strength Thermoplastic Polycarbonate Toggle Resists Breaking and Chipping Under Heavy Abuse; Heavy Duty Toggle Bumpers for Smooth and Quiet Operation; Back Body Made of Glass-Reinforced Nylon; Locking Support Provides Resistance to Face and Back Body Separation; Cam Designed for Fast Make with Positive Break Action to Minimize Arcing and Prolong Switch Life; Oversized Silver Alloy Contacts for Longer Dependable Switch Life; Tri-Drive Terminal and Mounting Screws

Specifications:

Type: Toggle
Current Rating: 20 Amp
Voltage Rating: 120/277 Volt AC
Power Rating: 1 HP and 2 HP
Operation Type: 4-Way
Material: Glass Reinforced Nylon (Back Body), Nylon (Front Body), Thermoplastic Polycarbonate (Toggle)
Color: Ivory
Wiring: Back, Side
Size: 1.32 Inch Width x 1.073 Inch Depth x 3.281 Inch Height
Wall Plate Included: No
Application: Hard Use, Specification Grade
Approval: UL 20, CSA C22.2
