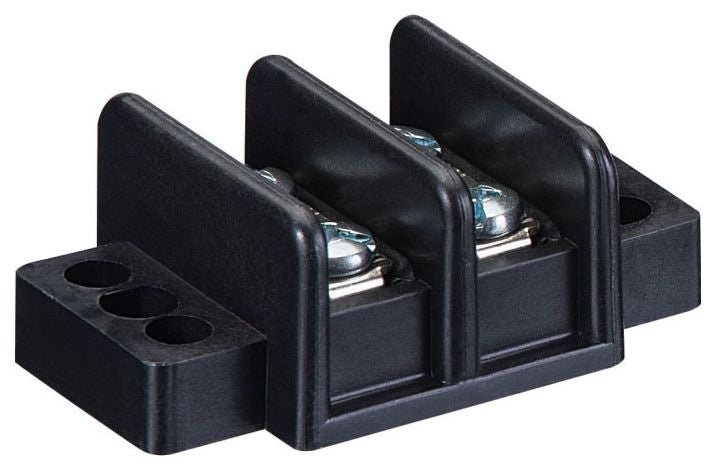

IDEAL Electrical 89-212 Terminal Strip

IDEAL Terminal Strips are designed and manufactured to be rugged, reliable, and easy to use. A thermoplastic base and corrosion-resistant screws and hardware provide extended service life. Optional accessories provide convenient, versatile application. Available in a wide variety of circuit configurations, electrical ratings and center spacings, an IDEAL terminal strip is available for virtually any job.

Specifications:

Type: Center Spacing
Number of Circuits: 12
Voltage Rating: 600 Volt (UL)
Current Rating: 30 Amp (UL)
Wire Size: 22 to 10 AWG (Copper)
Terminal Type: #8-32 TPI Philips Slotted Screw
Temperature Rating: -40 to 130 Deg C
Housing Material: Rugged Polyester Thermoplastic
Mounting: Surface
Approval: UL, CSA
