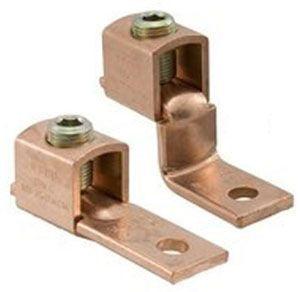

Ilsco SLU-25 Mechanical Lug

Provides Maximum Conductivity and Strength; Compact Design; Saves Space and Reduces Installation Time; Permits Inventories to be Kept to a Minimum; Re-Usable; Provides Efficient Use and Flexibility in the Field; Wires are Wedged Between Arched Pressure Bar and Collar Establishing Positive Contact and Firm Permanent Grip; Suitable for Use in Circuits Rated 35 kV or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; RoHS Compliant

Specifications:

Type: V-Bottom Collar, Compact
Number of Conductors: 1
Minimum Conductor Size: 14 AWG
Maximum Conductor Size: 10 AWG
Conductor Material: Copper
Pad Type: Offset
Screw Type: Slot
Material: Electrolytic Copper
Number of Pad Holes: 1
Pad Size: 7/16 Inch Length x 5/16 Inch Width
Stud Size: #6
Overall Length: 1 Inch
Approval: UL 453G, UL 486A/B, CSA
