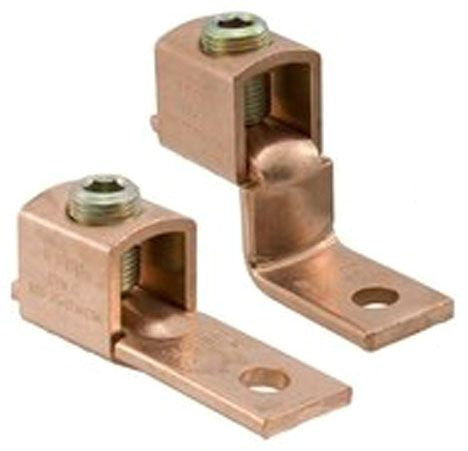

Ilsco SLU-70 Mechanical Lug

Manufactured from Electrolytic Copper Tubing and Strip Stock; Compact Design; Range Taking; Re-Usable; Suitable for Use in Circuits Rated 35Kv or Less, Proper High Voltage Spacing and Insulation Techniques Must be Used; V-Bottom Collar; Rated to 90 Deg C; Provides Maximum Conductivity and Strength; Saves Space and Reduces Installation Time; Permits Inventories to be Kept to a Minimum; Provides Efficient Use and Flexibility in the Field; Wires are Wedged Between Arched Pressure Bar and Collar Establishing Positive Contact and Firm Permanent Grip; Versatility; RoHS Compliant

Specifications:

Type: V-Bottom Collar, Compact
Number of Conductors: 1
Minimum Conductor Size: 8 AWG
Maximum Conductor Size: 2 AWG
Conductor Material: Copper
Pad Type: Offset
Screw Type: Slot
Material: Electrolytic Copper
Number of Pad Holes: 1
Pad Size: 21/32 Inch Length x 1/2 Inch Width
Stud Size: 1/4 Inch
Overall Length: 1-17/32 Inch
Approval: UL 453G, UL 486A/B, CSA
