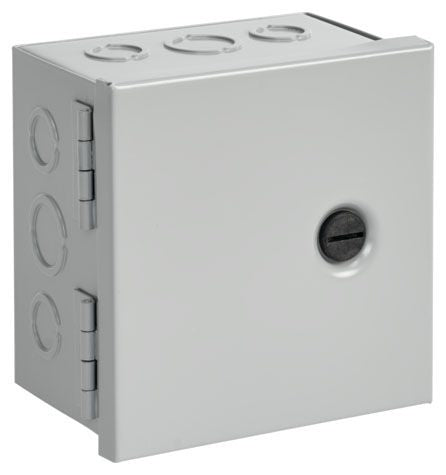

Hoffman Enclosures AHE12X12X4 Enclosure Hinged Cover

Various Sizes of Easily Removable Concentric Knockouts on All Four Sides; Butt Hinges; Mounting Holes on Back of Box; Provision for Grounding; RoHS/REACH Compliant

Specifications:

Type: Unflanged
Height: 12 Inch
Width: 12 Inch
Depth: 4 Inch
Material: Steel
Material Specification: 16/14 Gauge
Finish: Polyester Powder Coated
Color: ANSI 61 Gray
Enclosure: NEMA 1, IP30
Mounting: Wall
Cover Type: Butt Hinge, Slotted Flush Latch
Knockout Location: (10) Sides, (10) Ends
Number of Knockouts: 20
Knockout Size: (4) (1/2-3/4 Inch), (4) (3/4-1 Inch), (2) (1-1 1/4 Inch) Concentric Knockout Sides, (4) (1/2-3/4 Inch), (4) (3/4-1 Inch), (2) (1-1 1/4 Inch) Concentric Knockout Ends
Service Type: Indoor
Approval: UL 50/50E, CUL, CSA C22.2
